Red and the Wolf

 I promise to start posting new tutorials as soon as I am caught up on commissions and the pile of figures sitting here waiting to be finished. Until then; hope you enjoy her.
mark










Saturday, July 7, 2012

JUST FINISHED: Red Riding Hood

 I wanted this image in my gallery (drop in at 24 West Orange, Lancaster, PA if you are in town) so I made her again with a longer cloak and base. She would be beautiful on someone's mantle.
She will be listed in our Ebay store soon.
Thanks for having a look!
Mark





RIDING FIGURE

 The armature for the riding figure is scaled to an existing "smaller person". The lower part of the armature is 14 gauge wire bent in half at the base of the neck and bent again at the waist and hip joints.
 The upper part of the figure is 14 gauge wire also and is bent at the waist then a 3/16 tube is slipped over the left arm. The wire is bent at the base of the neck and again at the shoulder socket and elbow.
 The top and bottom wires are overlapped from the waist to the base of the neck and taped together with foil tape.
* Foil tape is rated to 230 degrees (F). What I have found in playing with the tape is this: the tape will take higher temps without damage to the foil but the glue becomes soft and melt at 280 degrees. We are covering the tape with foil and masking tape both of which shield the foil tape from the higher temperate of curing so the tape does not react badly to our firing temp of 280 degrees.
The tube over tube connection for the left arm is adjusted for length and the body is padded with foil on the armature. Be careful to compress the foil lightly so air pockets have room to expand inside the body during curing. All surfaces are wrapped in masking tape to keep the clay from picking up oxidation from metal surfaces.
We are ready to apply clay ... next time.
Have a great day!
Mark

Thursday, June 21, 2012

(INSIDER INFO)

Pass it on... If we hit 1000 followers, we will give away a sculpture to one of you. If you are a watcher, sign up!

HERE WE GO!

I will try to include as many details and tips as I can while doing this piece.  Feel free to ask details if I miss something.
For complex sculptures; in this case a cantilevered figure, pre-planning is essential for strength.

 Here is a very fast sketch of the concept for this piece.











This overlay shows the armature inside the figures.
The main support (black) is either a rod or series of wire and tubes which will support the two figures and will run from the base through the body of the bird to end as a socket for the support in the hand of the child. In this case I used a 14 gauge wire inside a 5/32 brass tube as the main support.
The rest of the bird armature is a  14 gauge wire which will be attached to the main support (red).
Support for the child is a simple wire armature (if you are not familiar with this, look in the older posts on the blog) with a 3/16 tube over the left arm wire which slips over the end of the main support tube (orange).

 The main support
 Neck and right leg part of the armature
 The two parts of the armature are joined with foil tape.
An additional brass rod is taped to the knee joint to add more support.

More to follow in days to come.
Thanks for looking, have a great day!
Mark



Monday, June 11, 2012

Thursday, May 31, 2012

Just an Update



Sorry I have been absent but getting the gallery up and running as well as finishing some commissions has taken a bit more time than I had figured on.
Will begin posting soon. Until then, here are some new pieces finished in the last week.

Saturday, March 24, 2012

WINGS

Thought we would take a little more time to go into more depth on how to make some of the basic things which we all take for granted. I have been asked a few times how to make these wings so here goes.

This diagram shows the feather layout of a bird's wing.
Using this diagram, I built the first wing for this figure  over the support rod which elevated the figures above the base.

























I transferred the measurements from this first wing onto a piece of paper so I could get the size roughly the same.









A folded piece of thin leather is cut as the support for the wire which will be inside it and the feathers which will cover it. This s the sized to fit in the areas covered by the primary coverts, secondary coverts and the marginal coverts (see above diagram)


 A 14 gauge wire is bent to fit inside the leather with about 3/4" sticking out the end to insert into the figure.
The wire is glued along the fold of the leather with Fabri-tac glue.
 I purchase my feathers at Plumes N Feathers . These are coque (rooster) feathers which are naturally bronze and show bronze, green, and black when dyed.

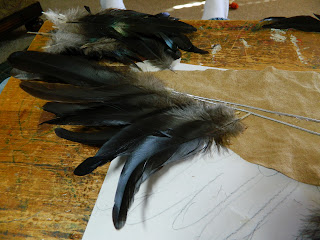

The feathers are sorted by shape and size.
Many feathers are going to have a directional shape to them meaning that they belong on the left or right side of the bird. Use this same determination when arranging feathers on your wings.
 Once the feathers are sorted and arranged, a layer of glue is applied to the open leather and the first row of primary and secondary feathers are placed into the glue starting with the tips of the wing and heading toward the body.
 ***The diagram above is drawn from the top of the wing. As you look at the top of a wing, each feather lays under the previous feather (for support and sealing the wing against air infiltration) from the tip of the wing to the body of the bird.  When you attach the feathers following the same direction, each feather will overlap the previous feather in the same manner.
First row is done.
The leather is now folder over and glued down over the ends of the first row of feathers.











 Coverts are now glued in place starting from the outside of the wing and heading toward the body.
Marginal coverts are installed the same way using shorter feathers which are just the tips cut off a feather.
 Both top and bottom sides are done. Be sure to flip the feathers over when installing the bottom coverts so the feather is concave (curved in) on the underside and convex (curved out) on the top side.
Smaller trimmed feathers are used to cover the edge of the wing starting at the Alula and working toward the body.

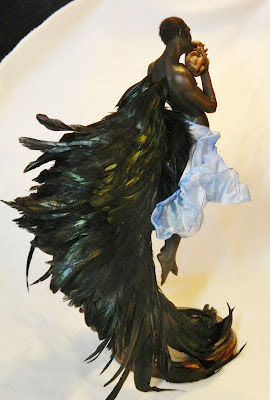

 The finished wing top.
And bottom.
 The wing is inserted into the body by drilling two holes in the torso at a downward angle where the wires stick out of the wing. The wires are then bent down slightly so they will not work their way out of the torso as they are displayed. The wing is shaped by bending the wire inside the wing. Do this while the glue is still setting so you can  shift the feathers slightly to cover any holes in your feather pattern. You can add more cover feathers if gaps develop while shaping the wing.
Using black leather would be a good idea so the support is less likely to show. I was out of black this day!

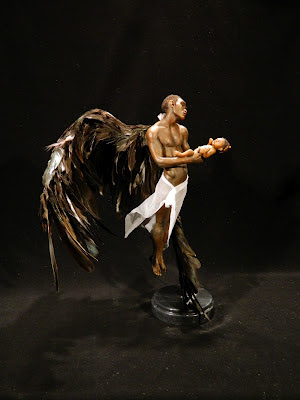

The finished piece.
Have a great day!
Mark
